Active
206 Series Regulator
Four-port, chrome-plated forged brass, single stage liquid cylinder regulator

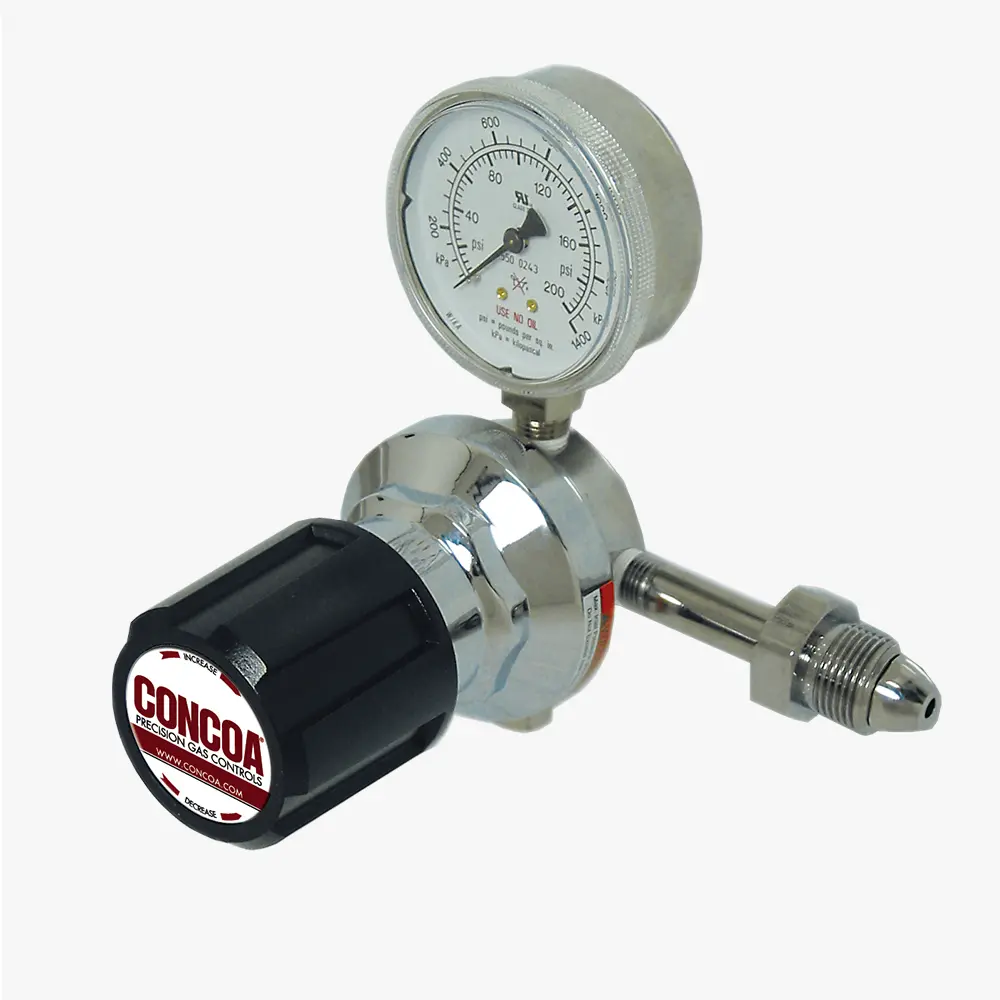

2063021-01-580 shown
The 206 Series regulator provides primary pressure control of gases supplied from cryogenic liquid cylinders. Though optimized for flow with liquid cylinders, the CONCOA 206 Series regulator is rated to 3000 PSIG (210 BAR) for safe use in high pressure applications.
- 316L stainless steel diaphragm prevents inboard diffusion
- Large CAPSULE® seat design permits flow rates unobtainable with conventional regulators
- 3000 PSIG inlet pressure rating allows safe use on high pressure cylinders
- Standard relief valve protects diaphragm and gauges
- Spectometric helium leak check verifies leak integrity
Related Products
529 Series Protocol Purge Station
Single station manifold with process purge for high purity gas applications
529 Series Protocol Alarm Station
Single station manifold with remote pressure alarm for high purity gas applications
WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
CAPSULE® is a registered trademark of Controls Corporation of America
