305 Series Regulator

Chrome-plated brass barstock, single stage cylinder regulator for inert medical laboratory gas applications

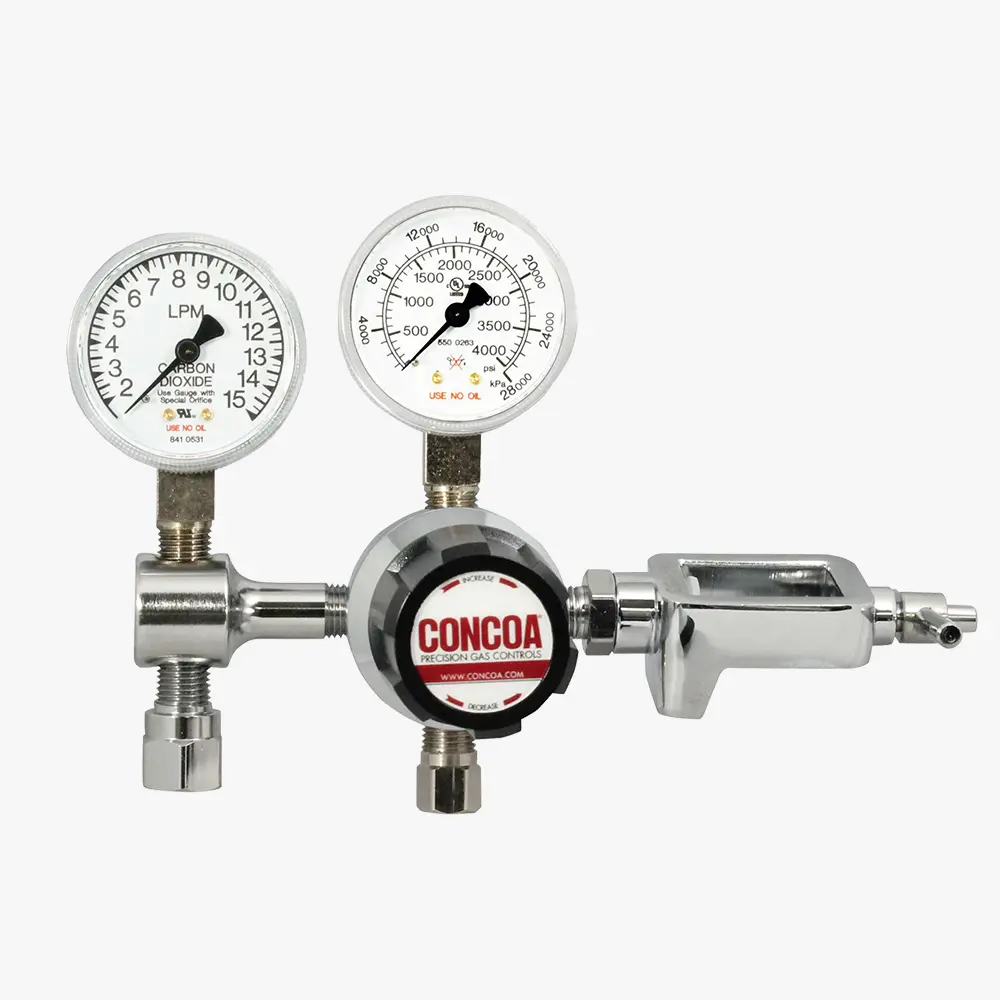

3058381-01-M2D shown

The 305 Series regulator is ideal for medical laboratory applications. It offers point-of-use pressure control for most gases with a cylinder fill pressure of less than 500 PSIG (35 BAR), or primary pressure control for inert gas applications that can tolerate minor fluctuations in outlet pressure due to diminishing inlet supply. Like almost all CONCOA regulators, the maximum inlet pressure for the 305 Series regulator is at least 3000 PSIG (210 BAR) or more, depending on the configuration. The regulator is available with a standard 2-15 LPM flowgauge calibrated for carbon dioxide or a custom 2-15 LPM calibration for any non-corrosive pure gas or gas mixture. For these options, CONCOA uses a thermal mass flowmeter to size the outlet orifice to the desired flow requirements of the specific gas. Although the regulator is available with inlet and outlet connections typical to medical environments, the 305 Series regulator is not suitable for therapeutic use with humans. For medical applications requiring constant outlet pressure or flow rate, CONCOA recommends the 315 Series two-stage regulator.

◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
305 Series Regulators Catalog Page
English
RS305S
AH
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
CRN File OH5216
English
CRNOH5216
26

prop 65 warningWARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.

CAPSULE® is a registered trademark of Controls Corporation of America
