Active
401 Series Regulator
Six-port, chrome-plated brass barstock, single stage cylinder regulator for ultra-high purity inert gas applications

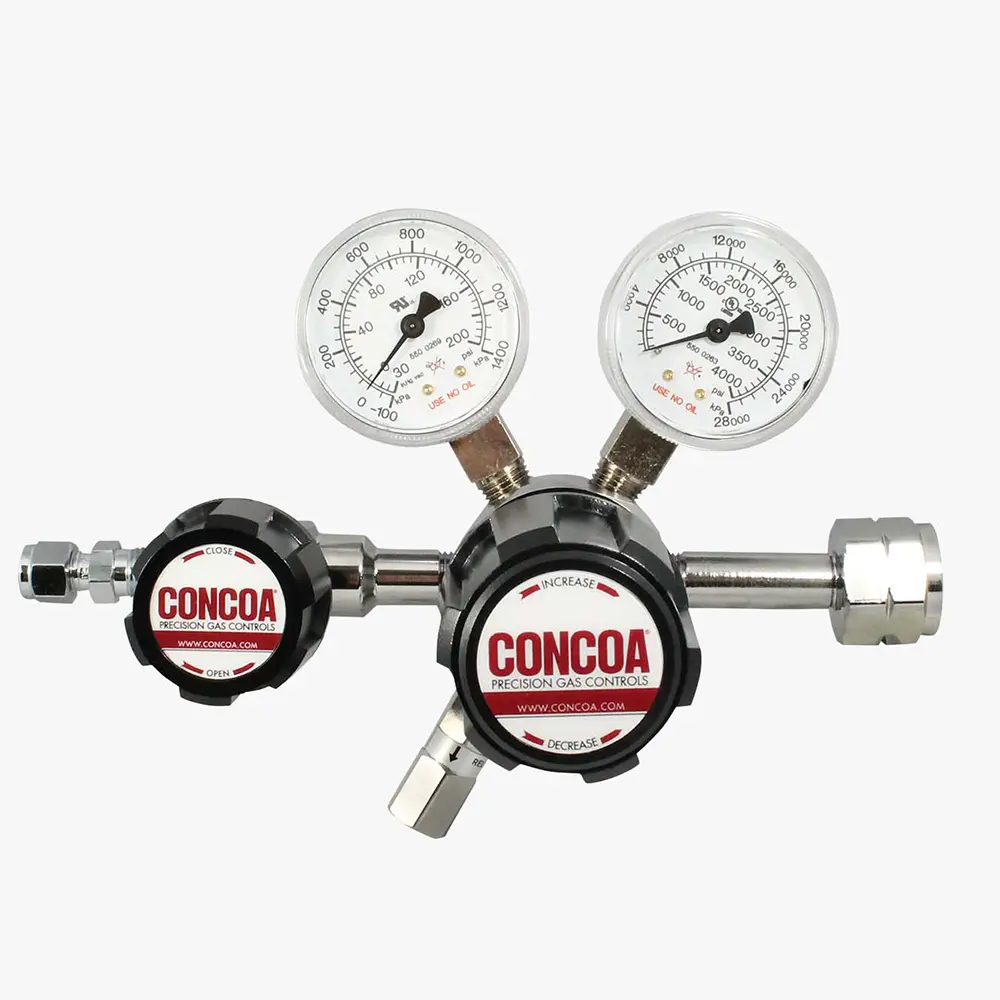

4013331-01-350 shown
The 401 Series single stage regulator is intended for primary pressure control of non-corrosive, ultra-high purity, or liquified gases (up to grade 5.5) in applications that can tolerate minor fluctuations in outlet pressure due to diminishing inlet supply or where inlet pressure is constant or under 500 PSIG (34 BAR). Like almost all CONCOA regulators, the maximum inlet pressure for the 401 Series regulator is at least 3000 PSIG (210 BAR) or greater, depending on system configuration. Available with a variety of options installed at the factory, the CONCOA 401 Series regulator may be configured as a single station manifold with or without purge, low-pressure alarm, or multiple inlets.
- Metal-to-metal diaphragm seal prevents gas contamination
- CAPSULE® seat design features integral 360° filtration
- Front and rear panel mountable eases installation
- Pressure ranges from 15 PSIG to 500 PSIG (0 to 34 BAR) accommodates a broad range of applications
- Pipe away relief valve vents exhaust gases safely
- Cleanroom assembly eliminates contamination at installation
- Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
- Spectometric helium leak check verifies leak integrity
Related Products
529 Series Protocol Purge Station
Single station manifold with process purge for high purity gas applications
529 Series Protocol Alarm Station
Single station manifold with remote pressure alarm for high purity gas applications
WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
CAPSULE® is a registered trademark of Controls Corporation of America
