Cylinder Bracket and Chain

Bracket and chain for high pressure gas cylinders

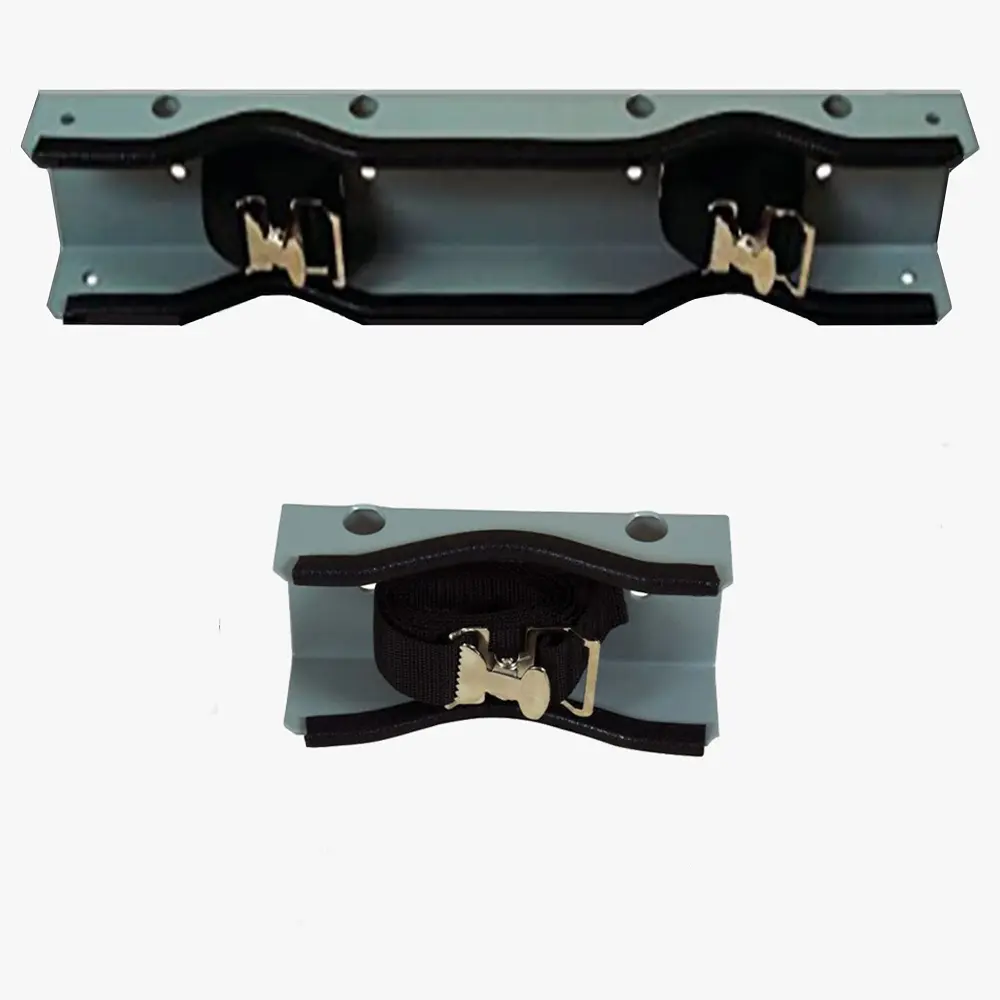

5181611 and 5181612 shown

Cylinder brackets, chains, and straps ensure safe and compliant gas cylinder use and storage. They are designed to secure up to three gas cylinders of normal or smaller size. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder station. Chain sets assist in securing the cylinders and can be installed without removing the bracket from the wall or structure. Also available are heavy-duty polypropylene straps with steel cinch buckles to hold individual cylinders securely against brackets. CONCOA offers cylinder and lecture bottle safety supplies needed to protect, support, and secure compressed gas cylinders for any system installation.

Features

Powder-coated steel support brackets ensure long service life and chemical resistance
Wall mounting design provides a space-saving solution
Polypropylene support straps ensure additional security for individual cylinders
Secondary support chain increases safety on any installation

Specifications

Bracket material: 11-gauge, hot rolled steel
Strap material: Polypropylene

Ordering Information

◂ scroll to see more ▸

Part Number	Description	Weight
5181611	Single Cylinder Steel Wall Bracket and Strap, 4.25 in x 8 in x 2.25 in (108 mm x 203 mm x 57 mm), fits Cylinder Diameter up to 14 in (356 mm)	3 lbs (1.4 kg)
5181612	Two Cylinder Steel Wall Bracket and Strap, 4.25 in x 23.75 in x 2.25 in (108 mm x 603 mm x 57 mm), fits Cylinder Diameter Up to 12 in (305 mm)	8 lbs (3.6 kg)
5181613	Three Cylinder Steel Wall Bracket and Strap, 4.25 in x 35.75 in x 2.25 in (108 mm x 908 mm x 57 mm), fits Cylinder Diameter from 4 in (102 mm) to 14 in (355.6 mm)	10.7 lbs (4.9 kg)
5181614	Single Cylinder Steel Bench Bracket with Swivel Pad Clamps, 4.25 in x 8 in x 4 in (108 mm x 203 mm x 102 mm), Maximum Bench Thickness 1 3/4 in (44mm)	4.5 lbs (2.0 kg)
5181615	Chain Set for Cylinder Support Bracket, 40 in (1016 mm) Each	1.0 lb (0.5 kg)
5181615-01-001	One Chain for Cylinder Support Bracket, 40 in (1016 mm)	0.5 lb (0.2 kg)
5181615-01-002	Two Chains for Cylinder Support Bracket, 40 in (1016 mm) Each	1.0 lb (0.5 kg)
5181615-01-003	Three Chains for Cylinder Support Bracket, 40 in (1016 mm) Each	1.5 lb (0.7 kg)
5181615-01-004	Four Chains for Cylinder Support Bracket, 40 in (1016 mm) Each	2.0 lb (0.9 kg)
5181616	Lecture Bottle Benchtop Stand, 8 in x 8 in x 5 in (203 mm x 203 mm x 157 mm)	1.5 lb (0.7 kg)
5181617	Lecture Bottle Bench or Wall Mount (one lecture bottle), 5 in x 4 in x 8 in (127 mm x 102 mm x 203 mm)	1.5 lb (0.70 kg)
5181618	PVC Lecture Bottles for Bench or Wall Mount (three lecture bottles), 5 in x 4 in x 11 in (127 mm x 102 mm x 279 mm)	2.0 lb (0.90 kg)
5181619	Cylinder Strap with Steel Buckle, 54 in x 1.5 in (1372 mm x 38 mm)	1.0 lb (0.5 kg)
5182105-01-001	One Cylinder Ramp for use with CONCOA C-Series Cabinets, 2.5 in Rise x 24 in Depth x 42.5 in Width (64 mm in rise x 610 mm depth x 1080 mm width)	1.0 lb (0.5 kg)
5182105-01-002	Pair of Cylinder Ramps for use with CONCOA C-Series Cabinets, 2.5 in Rise x 24 in Depth x 42.5 in Width (64 mm in rise x 610 mm depth x 1080 mm width)	2.5 lb (1.2 kg)

Product Documents

◂ scroll to see more ▸

Document

Language

ID Number

Revision

Download

Regulator Mounting Brackets Catalog Page

English

RSBRK
