322 Series Regulator
Four-port, stainless steel barstock, single stage cylinder regulator for high purity gas applications

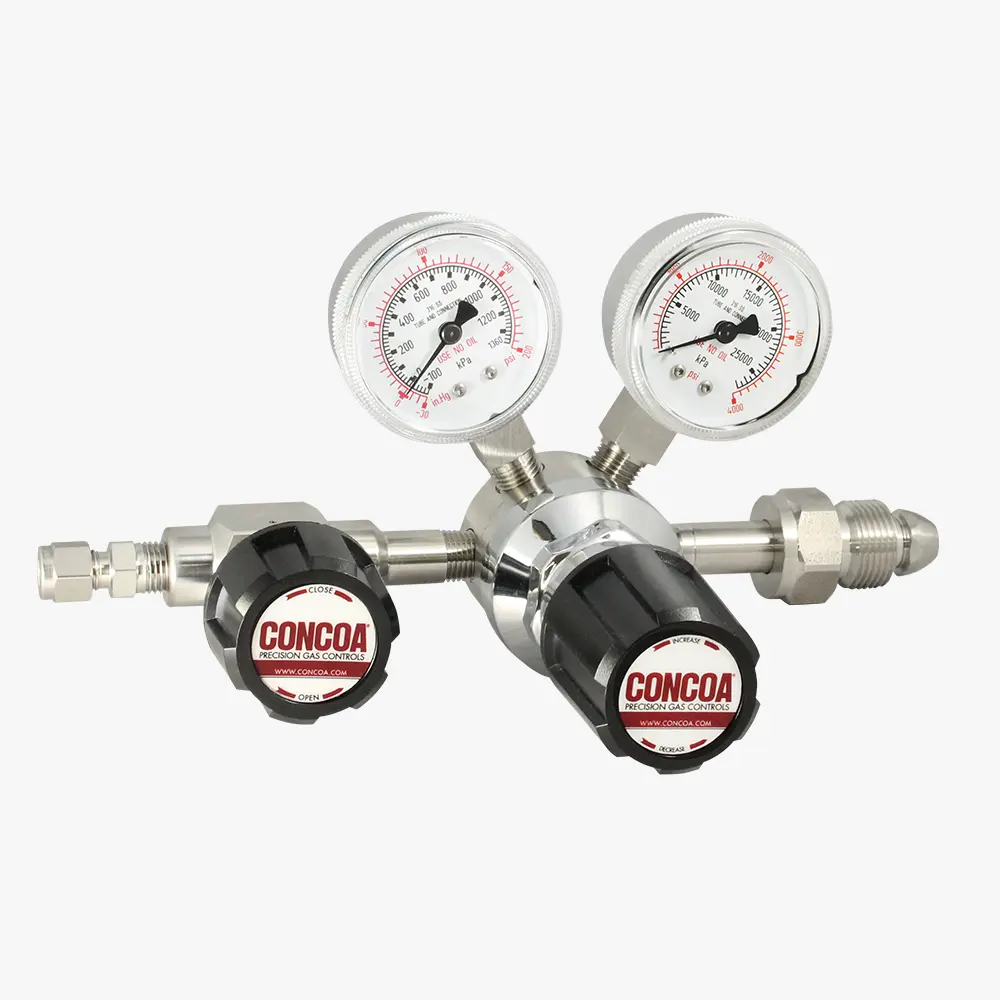

3223331-01-580 shown
The 322 Series single stage regulator is for primary pressure control of high purity gases (up to grade 5.5) and mildly reactive gases. However, it is not suitable for toxic or highly corrosive gases. Due to the pressure rise associated with high-pressure cylinder depletion, CONCOA recommends single-stage regulators for primary pressure control in applications that can tolerate minor fluctuations in outlet pressure due to diminishing inlet supply or where inlet pressure is constant or under 500 PSIG (34 BAR).
- 316L stainless steel diaphragm prevents inboard diffusion
- CAPSULE® seat design features integral 360° filtration in both stages
- Low wetted surface area minimizes purge requirements
- Rear panel mount eases installation
- Spectometric helium leak check verifies leak integrity
